Air reservoir Vz ÈD 1100/550
Air reservoir Vz ÈD 1100/550
Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C
The air reservoir is designed, approved and manufactured according to ÈSN 690010
The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines, production line 123, 125
The air reservoir can be supplied subject to takeover according to ÈD V6 regulation
Volume: 1100 L

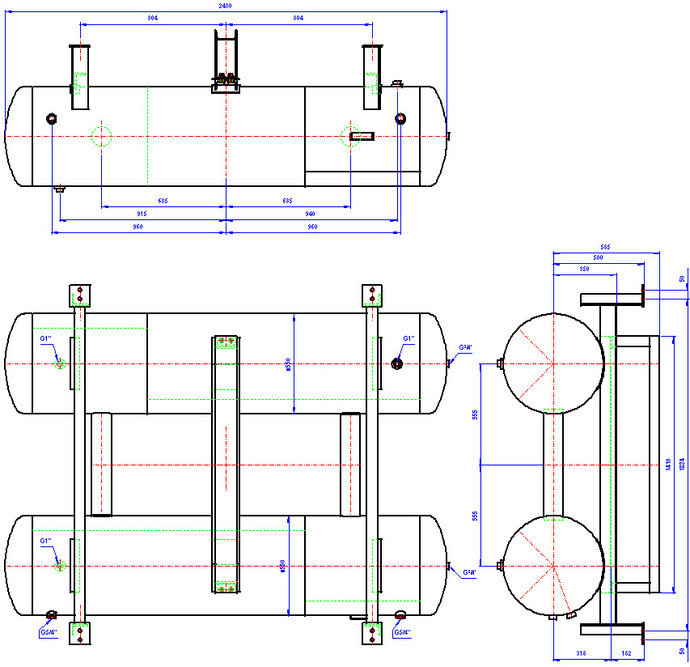

Škoda Drawing No.: Lo 85311/f
Vanìk Drawing No.: 1 KTV 0581
Vz ÈD 1100/550
-
Catalog sheet Vz ÈD 1100/550
, size: 303.01 kB, last update: 29.03.2011
