Air reservoir Vz ČD 33E 500/550

Air reservoir Vz ČD 33E 500/550

Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C

• The air reservoir is designed, approved and manufactured according to ČSN EN 286-3

• The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines, production line 110, 112, 210

• The air reservoir can be supplied subject to takeover according to ČD V6 regulation

• Volume: 500 L

• Škoda Drawing No.: Lo 89981/g

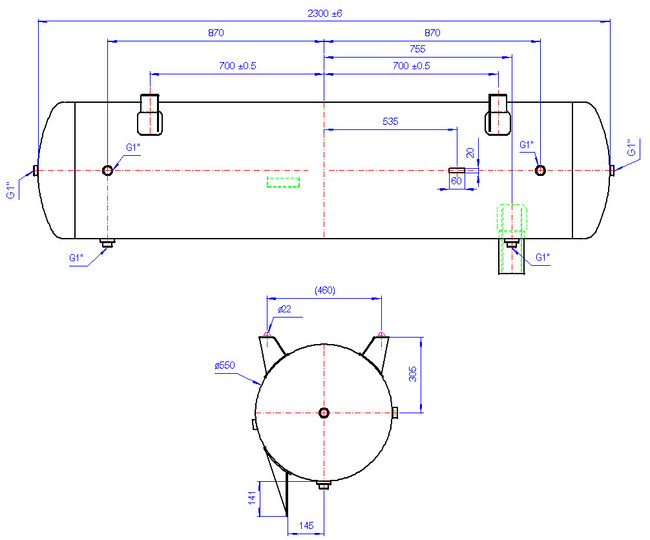

• Vaněk Drawing No.: 2 KTV 05702 R1

Vz ČD 33E 500/550



Air reservoir Vz ČD 33E 500/550

Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C

• The air reservoir is designed, approved and manufactured according to ČSN EN 286-3

• The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines, production line 33E41-1

• The air reservoir can be supplied subject to takeover according to ČD V6 regulation

• Volume: 500 L

• Škoda Drawing No.: Lo 89981 ; Lo 21 928S

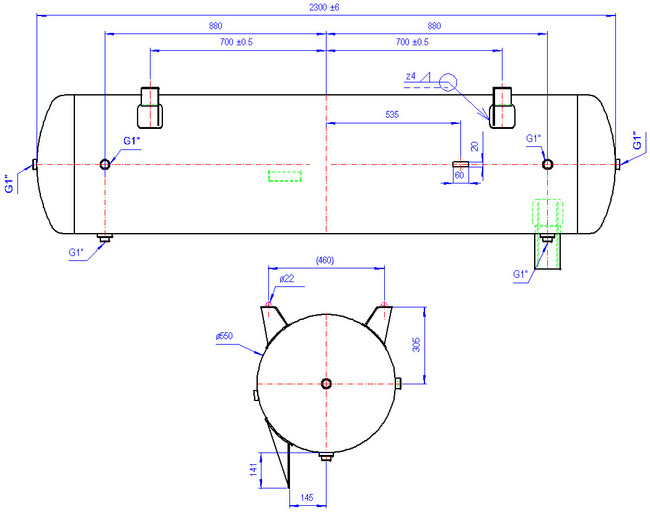

• Vaněk Drawing No.: 2 KTV 05702 R2

Vz ČD 33E 500/550
