Air reservoir Vz ÈD 46E 580/600
Air reservoir Vz ÈD 46E 580/600
Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C
The air reservoir is designed, approved and manufactured according to ÈSN EN 286-3
The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines, production line 230, 240
The air reservoir can be supplied subject to takeover according to ÈD V6 regulation
Volume: 580 L
Škoda Drawing No.: Lo 83978/c

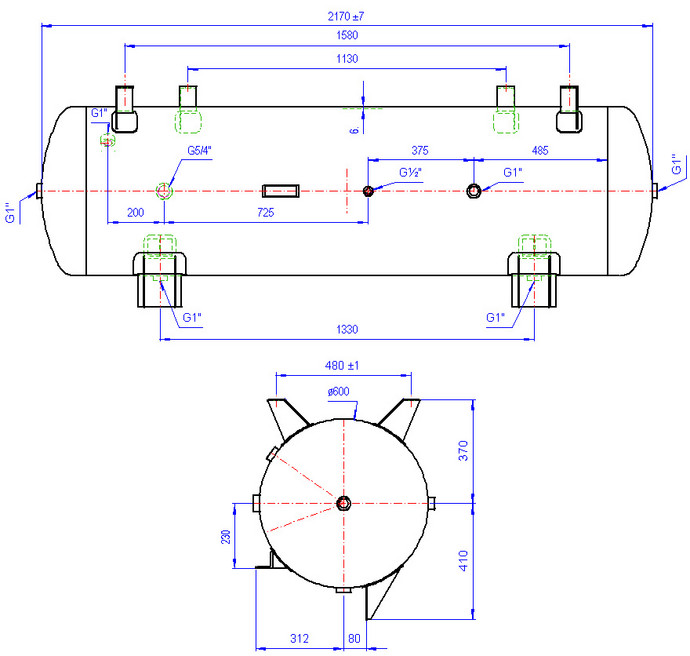

Vanìk Drawing No.: 1 KTV 05705 R2
Vz ÈD 46E 580/600
-
Catalog sheet Vz ÈD 46E 580/600
, size: 289.83 kB, last update: 29.03.2011
