Air reservoir Vz ÈD 55E 500/500

Air reservoir Vz ÈD 55E 500/500

Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C

The air reservoir is designed, approved and manufactured according to ÈSN EN 286-3
The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines, production line 150, 242, 363
The air reservoir can be supplied subject to takeover according to ÈD V6 regulation
Volume: 500 L

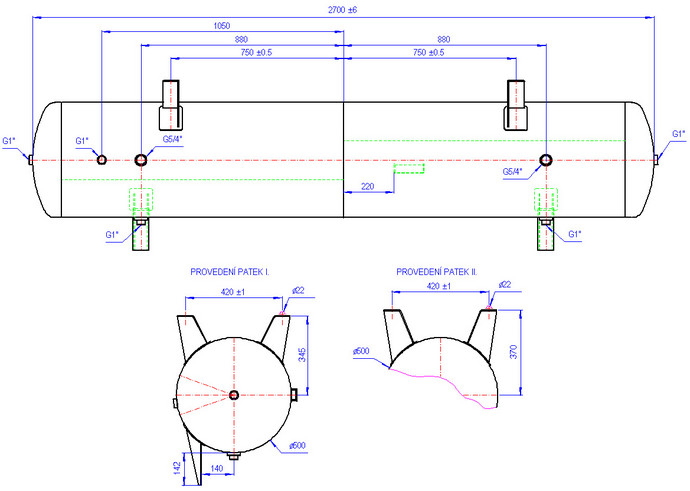

Škoda Drawing No.: Lo 001933/c
Vanìk Drawing No.: 2 KTV 05701

Vyplòte alternativní text Vz ÈD 55E 500/500
