Air reservoir Vz ÈD 61E 200/400
Air reservoir Vz ÈD 61E 200/400
Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C
The air reservoir is designed, approved and manufactured according to ÈSN EN 286-3
The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines, production line 182
The air reservoir can be supplied subject to takeover according to ÈD V6 regulation
Volume: 200 L

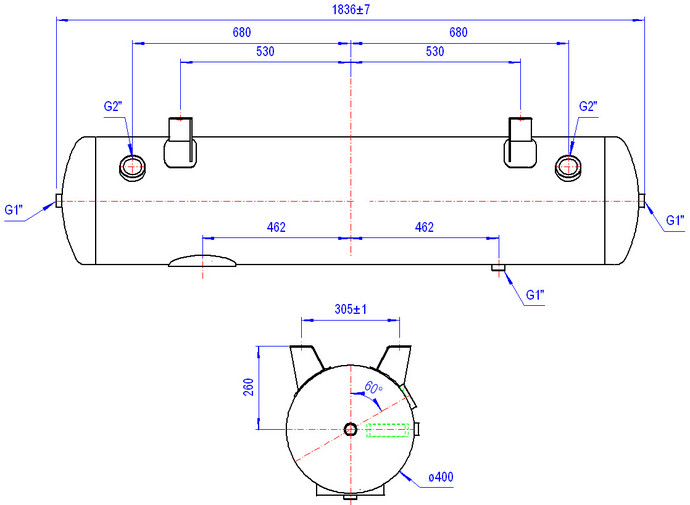

Škoda Drawing No.: Lo 82280
Vanìk Drawing No.: 2 KTV 05708 R3
Vz ÈD 61E 200/400
-
Catalog sheet Vz ÈD 61E 200/400
, size: 282.83 kB, last update: 29.03.2011
