Air reservoir Vz ÈD 985/500
Air reservoir Vz ÈD 985/500
Technical data:
Working substance: Compressed air
Working pressure: 10 bar
Working temperature : -40 / 100°C
The air reservoir is designed, approved and manufactured according to ÈSN 690010
The air reservoir for pneumatic brakes and auxiliary pneumatic equipment of Škoda engines, production line 140
The air reservoir can be supplied subject to takeover according to ÈD V6 regulation
Volume: 985 L

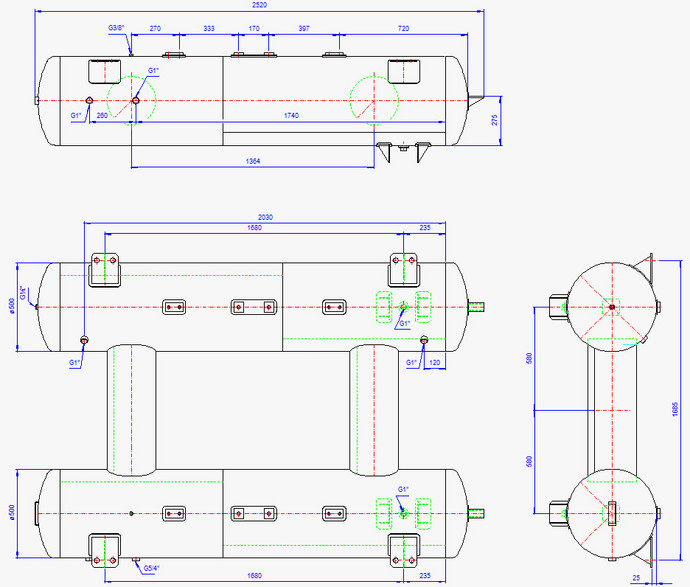

Škoda Drawing No.:
Vanìk Drawing No.: 1 KTV 0582
Vz ÈD 985/500
-
Catalog sheet Vz ÈD 985/500
, size: 200.06 kB, last update: 23.04.2012
